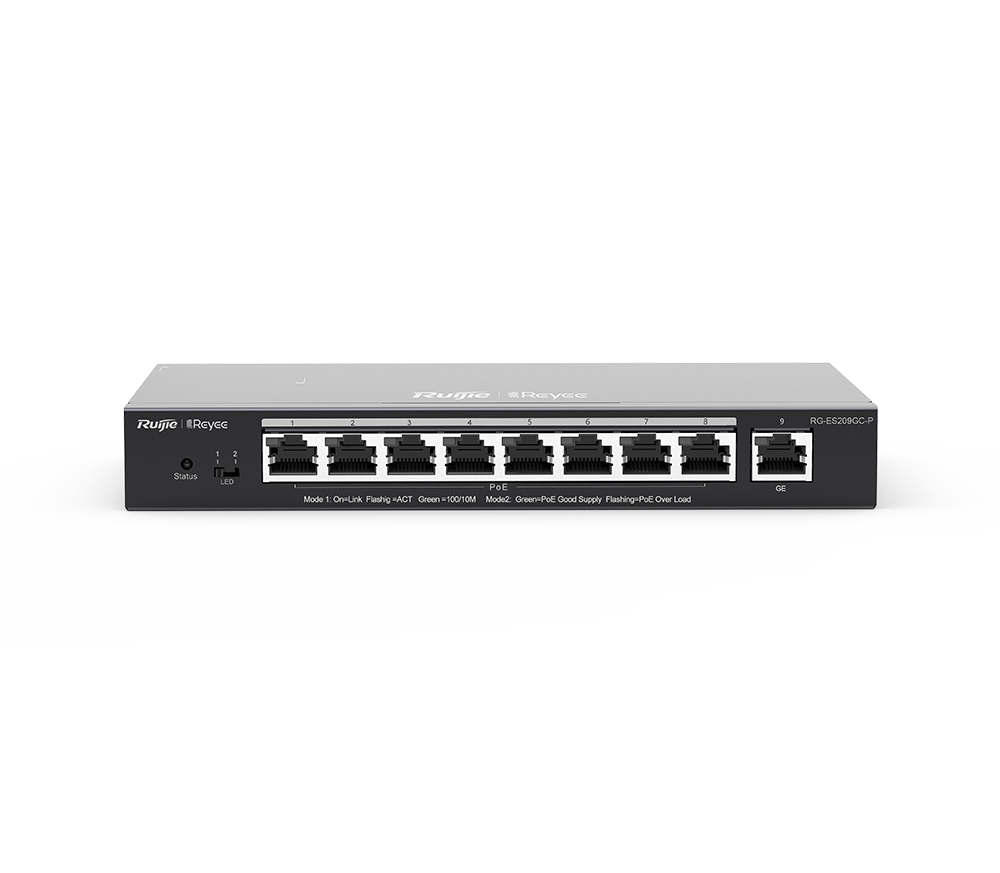

Коммутатор Reyee RG-ES209GC-P

                Model Specifications

RG-ES205GC-P

RG-ES209GC-P

RG-ES218GC-P

RG-ES226GC-P

                Model Specifications

RG-ES205GC-P

RG-ES209GC-P

RG-ES218GC-P

RG-ES226GC-P

Hardware specifications

Ports

4 10/100/1000 Base-T ports (802.3 af/at compliant), 1 10/100/1000 Base-T port

8 10/100/1000 Base-T ports (802.3 af/at compliant), 1 10/100/1000 Base-T port

16 10/100/1000 Base-T ports (802.3 af/at compliant), 2 SFP Base-X ports

24 10/100/1000 Base-T ports (802.3 af/at compliant), 2 SFP Base-X ports

Maximum output power per PoE port

30W

30W

30W

30W

Maximum PoE output power per switch

54W

120W

240W

370W

Switching capacity

10Gbps

18Gbps

36Gbps

52Gbps

Packet forwarding rate

7.44Mpps

13.392Mpps

26.784Mpps

38.688Mpps

Surge protection

Common mode: 4KV

Common mode: 4KV

Common mode: 4KV

Common mode: 4KV

Electrostatic discharge

Air discharge: 6KV

Contact discharge: 4KV

Air discharge: 6KV

Contact discharge: 4KV

Air discharge: 6KV

Contact discharge: 4KV

Air discharge: 6KV

Contact discharge: 4KV

Power consumption

≤60W

≤130W

≤280W

≤400W

Power supply

External power adapter

External power adapter

Built-in power supply

Built-in power supply

Dimensions (W x D x H)

148*78*26mm

202*108*28mm

300*230*43.6mm

440x289x43.6mm

MTBF

>200K

>200K

>200K

>200K

Operating environment

Operating temperature

0 to 40°C

0 to 40°C

0 to 40°C

0 to 40°C

Storage temperature

-40~70ºC

-40~70ºC

-40~70ºC

-40~70ºC

Operating humidity

10% to 90% RH

10% to 90% RH

10% to 90% RH

10% to 90% RH

Storage humidity

5% to 95% RH

5% to 95% RH

5% to 95% RH

5% to 95% RH

Software features

MAC capacity

2K

4K

8K

8K

Static MAC address

16

16

16

16

VLAN

Support 802.1Q VLAN

Port management

Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off

Security

Support broadcast storm suppression, port speed limit, port isolation

L2 features

Support port mirroring, loop protection, cable detection

Management

Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
